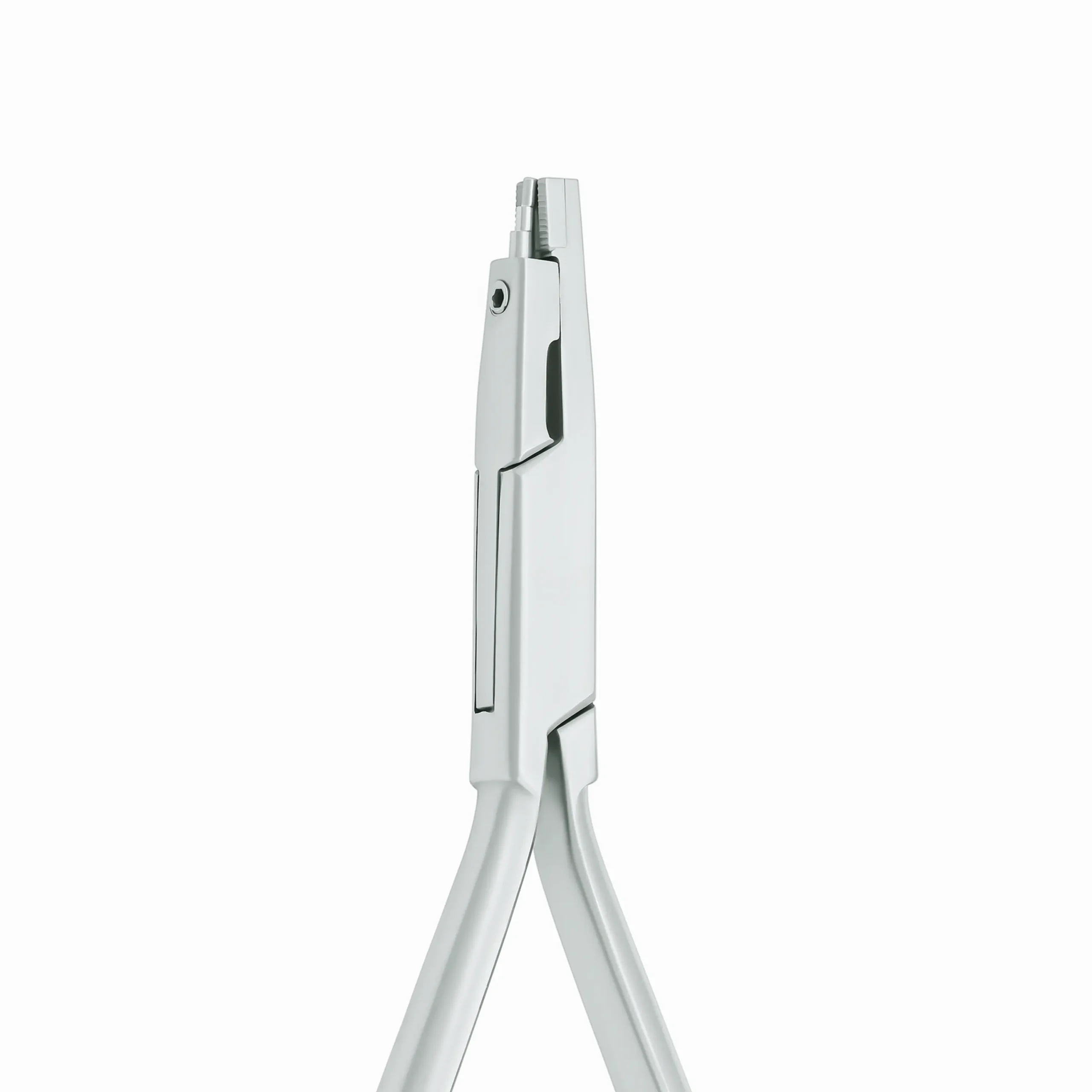

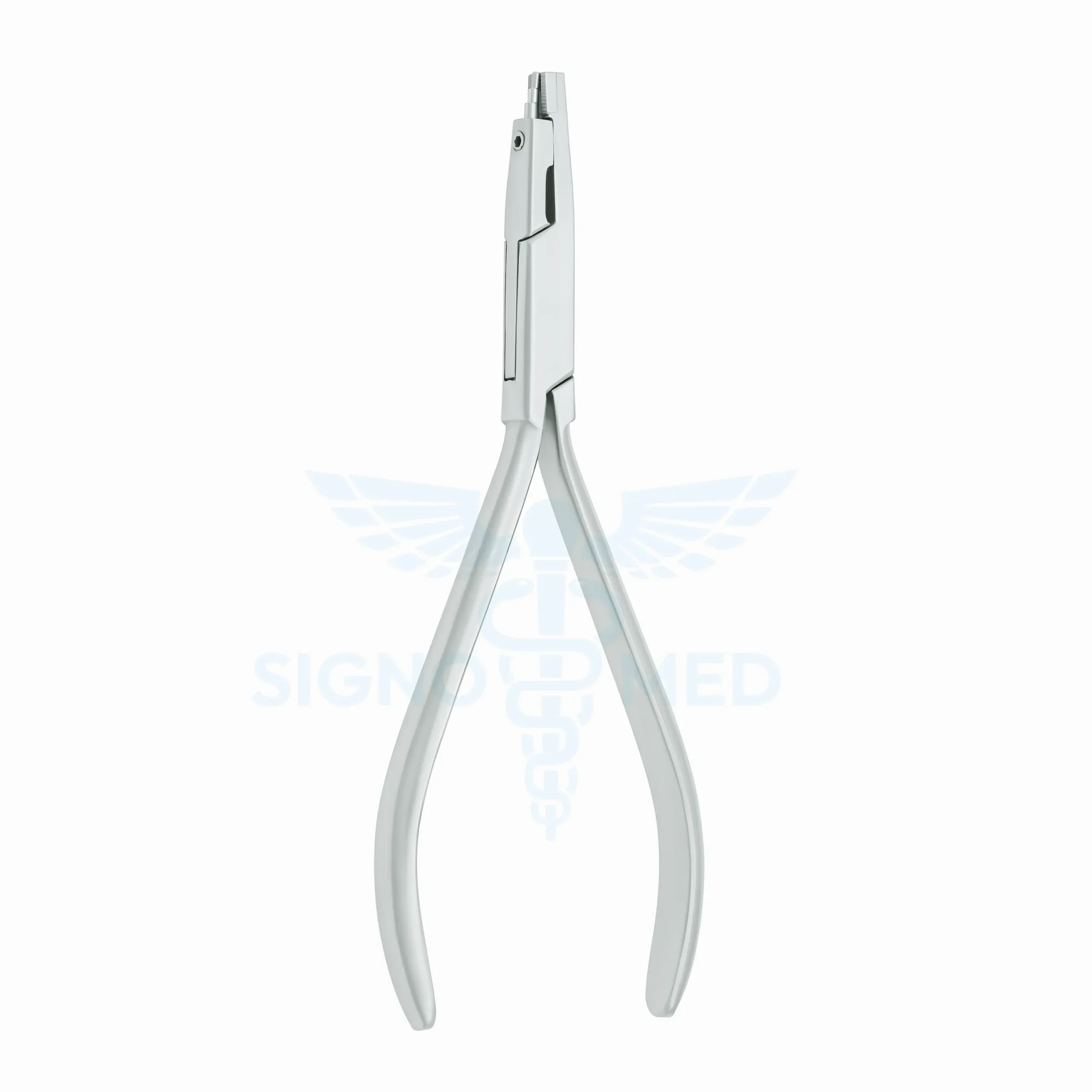

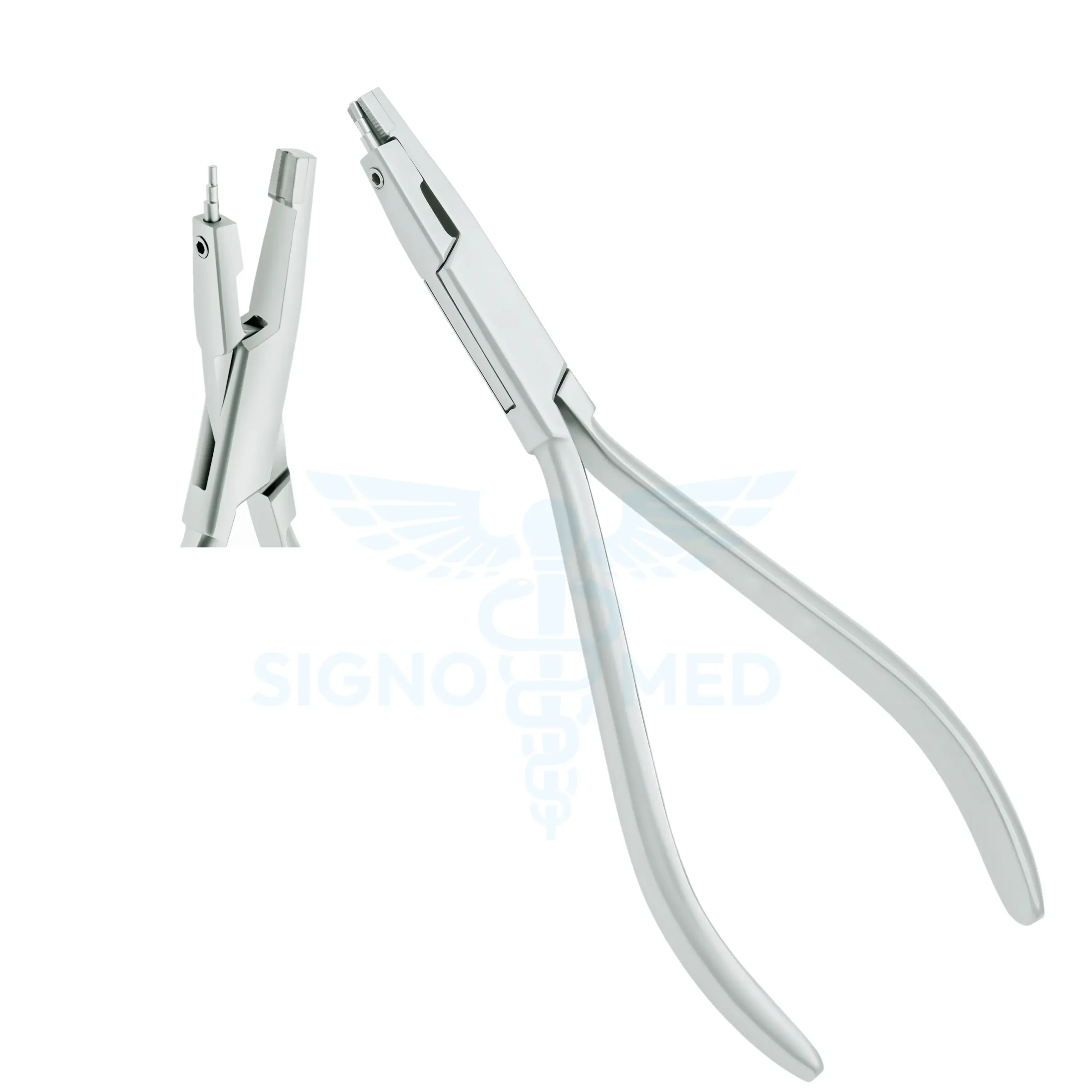

OMEGA LOOP FORMING PLIER
The Omega Loop Forming Plier is specially designed with concave with serrated and helical tip for making precise loops. The omega loop of graduated cone 0.045” (1.14mm), 0.060 (1.52mm), 0.075” (1.91mm) diameters. The concave with parallel serration ensure the non- slippage grip and makes loops easily.
| WIRE TYPES | MINIMUM | MAXIMUM |
|---|---|---|
| ROUND | .012” (.30mm) | .025” (.64mm) |
| RECTANGULAR | .016” × .016” (.41mm × .41mm) |
.022” × .025” (.56mm × .64mm) |
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products
NANCE LOOP FORMING PLIER
The Nance Loop Forming plier is designed for making and forming loop in four lengths 3mm, 4mm, 5mm, and 6mm on stainless steel wires. The groove at the end of the beaks to aid in closing loops. The one side serrated tip ensures to prevent the wire slippage and helpful for making loops easily.
| WIRE TYPES | MINIMUM | MAXIMUM |
|---|---|---|
| ROUND | .012” (.30mm) | .022” (.56mm) |
OCCULIST PLIER
The Occulist Plier is designed with one concave and on convex beak to create loops onto the wires. These precise tips form accurate helical closing loops on all stainless steel wires. It is also use to create loop ties, gable bends.
| WIRE TYPES | MINIMUM | MAXIMUM |
|---|---|---|
| ROUND | .012” (.30mm) | .020” (.51mm) |
STEP DETAILING PLIER 0.5mm
The Step Detailing Plier is designed to create first and second order bands. The special double sided designed head make easy to create accurate 0.5mm step bend on arch wire. It is ideal for adjustment of archwire.
| WIRE TYPE | MINIMUM | MAXIMUM |
|---|---|---|
| ROUND | .014” (.36mm) | .020” (.51mm) |
| RECTANGULAR | .016” × .016” (.41mm × .41mm) |
.025” × .025” (.64mm × .64mm) |
THREE JAW PLIER HEAVY
Three Jaw Pliers Heavy is specially designed to allow make an effective bend on wires, perform more accurate contouring and effortless adjust clasps. The long three jaws enhanced the durability and strong grip on all arch wires including both stainless steel and NiTi wires.
| WIRE TYPES | MINIMUM | MAXIMUM |
|---|---|---|
| ROUND | .012” (.30mm) | .030” (.76mm) |
TORQUING PLIER MALE
The Torquing Plier male is specially designed to apply precise torque to archwires to rotate and align the teeth. This is frequently use to adjust archwires in braces, where precise torque application is essential for rotating teeth, adjusting their angles, and achieving proper occlusion. The main function of the Male Torquing Plier is to apply control torque to the archwire. This helps to rotate the teeth, adjust their angle, and correct their alignment.
| WIRE TYPE | MINIMUM | MAXIMUM |
|---|---|---|
| ROUND | .016” (.41mm) | .020” (.51mm) |
| RECTANGULAR | .016” × .016” (.41mm × .41mm) |
.022” × .028” (.55mm × .71mm) |
V-STOP PLIER
The V-Stop Plier is designed for placing V bend on arch wires. V stop wire bending plier is used to create precise angles in orthodontic wires, crucial for controlling tooth movement and achieving desired alignment. This plier is making v on stainless steel and nickel titanium wires. The v is created with the inner edge and it is creating 1mm stop. In additional it is also create space between teeth and assist in directional force application.
| WIRE TYPES | MINIMUM | MAXIMUM |
|---|---|---|
| ROUND | .012” (.30mm) | .025” (.64mm) |
| RECTANGULAR | .016” × .016” (.41mm × .41mm) |
.018” × .018” (.46mm × .46mm) |
YOUNG LOOP FORMING PLIER
The young Loop Forming Plier has three loop forming steps with diameters measures 1.3mm, 3mm and 4.2mm. it is used for making similar and identical loops in rectangular wires where the dental wire needs loops. Up to 0.040” (1.0mm)
| WIRE TYPE | MINIMUM | MAXIMUM |
|---|---|---|
| ROUND | .012” (.30mm) | .040” (1.0mm) |
ADAMS PLIER
The Adams plier is specially designed for bending, adjusting orthodontic wires specially Adams clasps and other orthodontic appliances. The two flat pyramid square beaks allowing to make accurate and precise 90o angle.
| WIRE TYPES | MINIMUM | MAXIMUM |
|---|---|---|
| ROUND | .012” (.30mm) | .028” (.71mm) |
| RECTANGULAR | .016” × .016” (.41mm × .41mm) |
.022” × .028” (.56mm × .71mm) |
